Instructions for Installing an Aluminium Pedestrian Gate on Brickwork


Please follow the instructions shown in the illustrations below to install your aluminium pedestrian gate direct to brickwork when using wall mounted hinges.

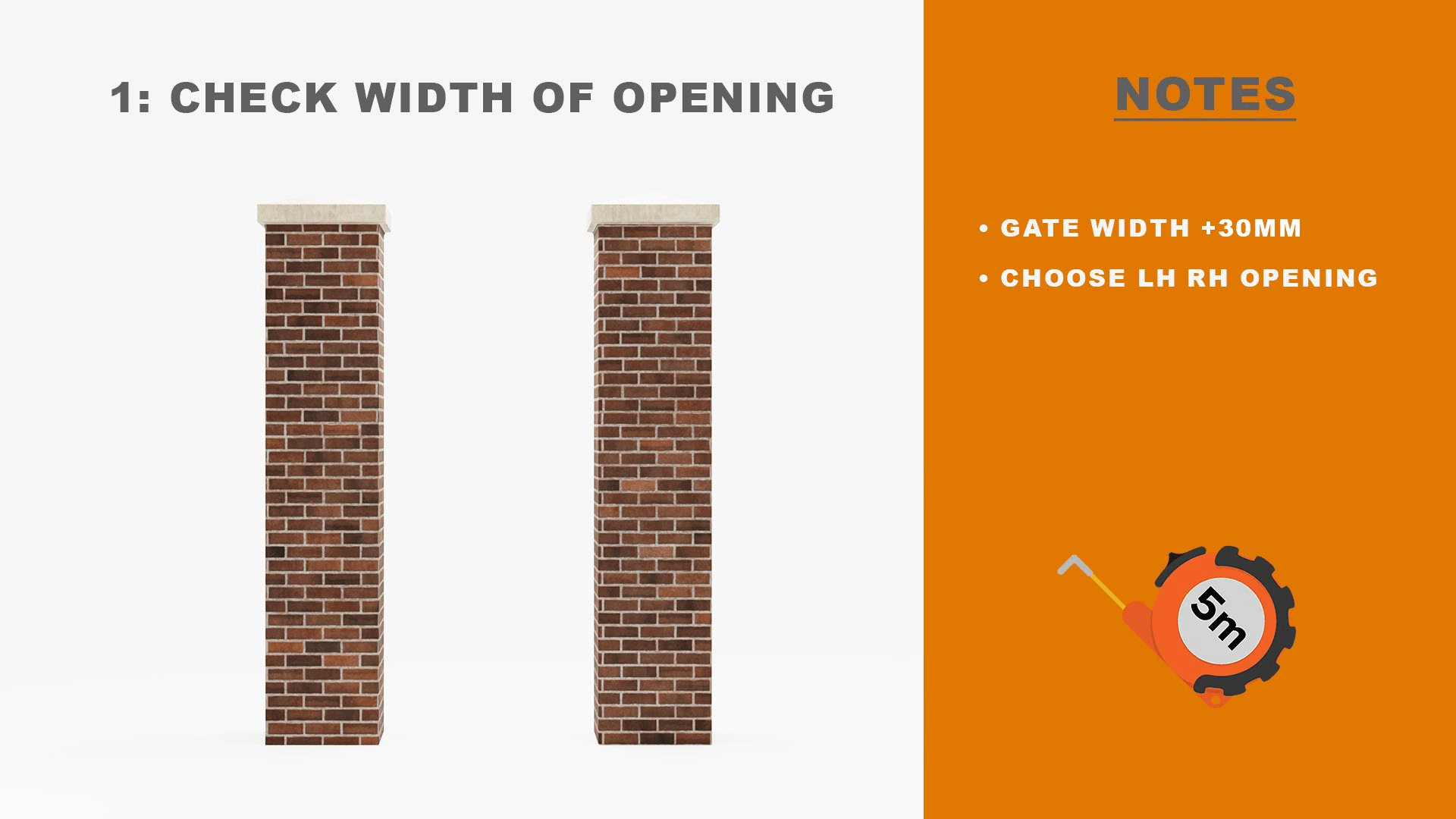

Check opening diagram

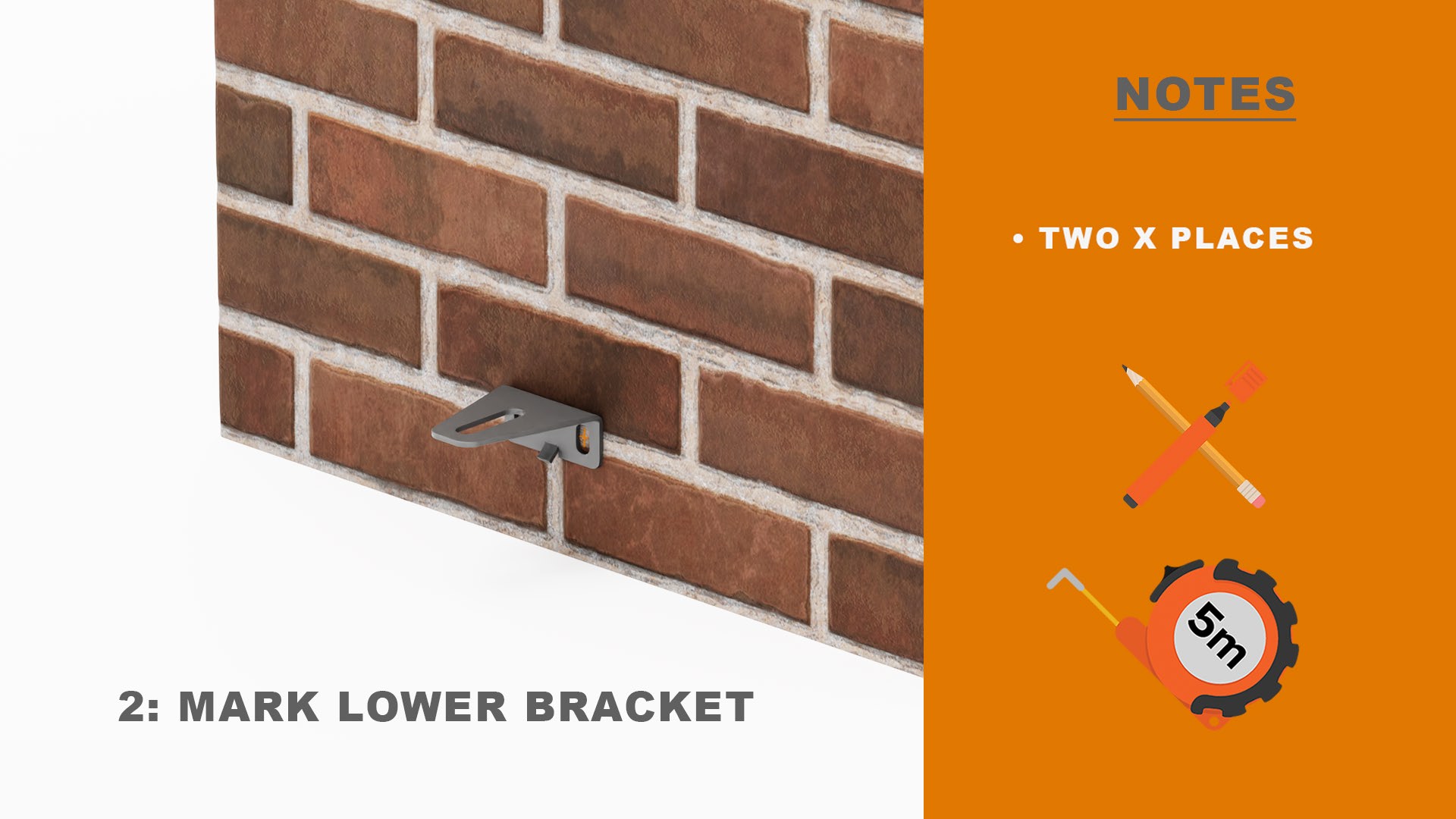

Mark Lower Bracket

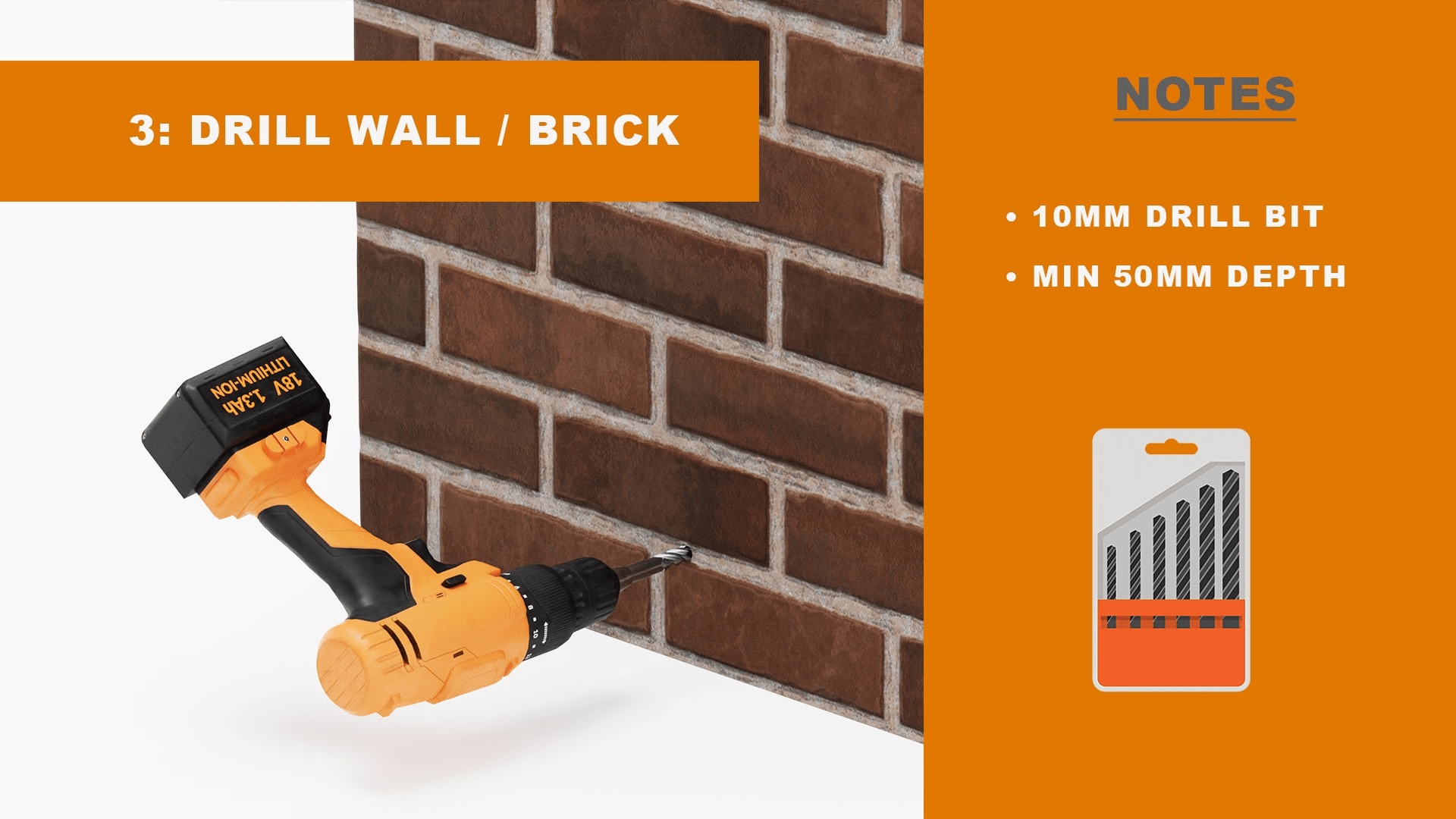

Drill wall / brickwork

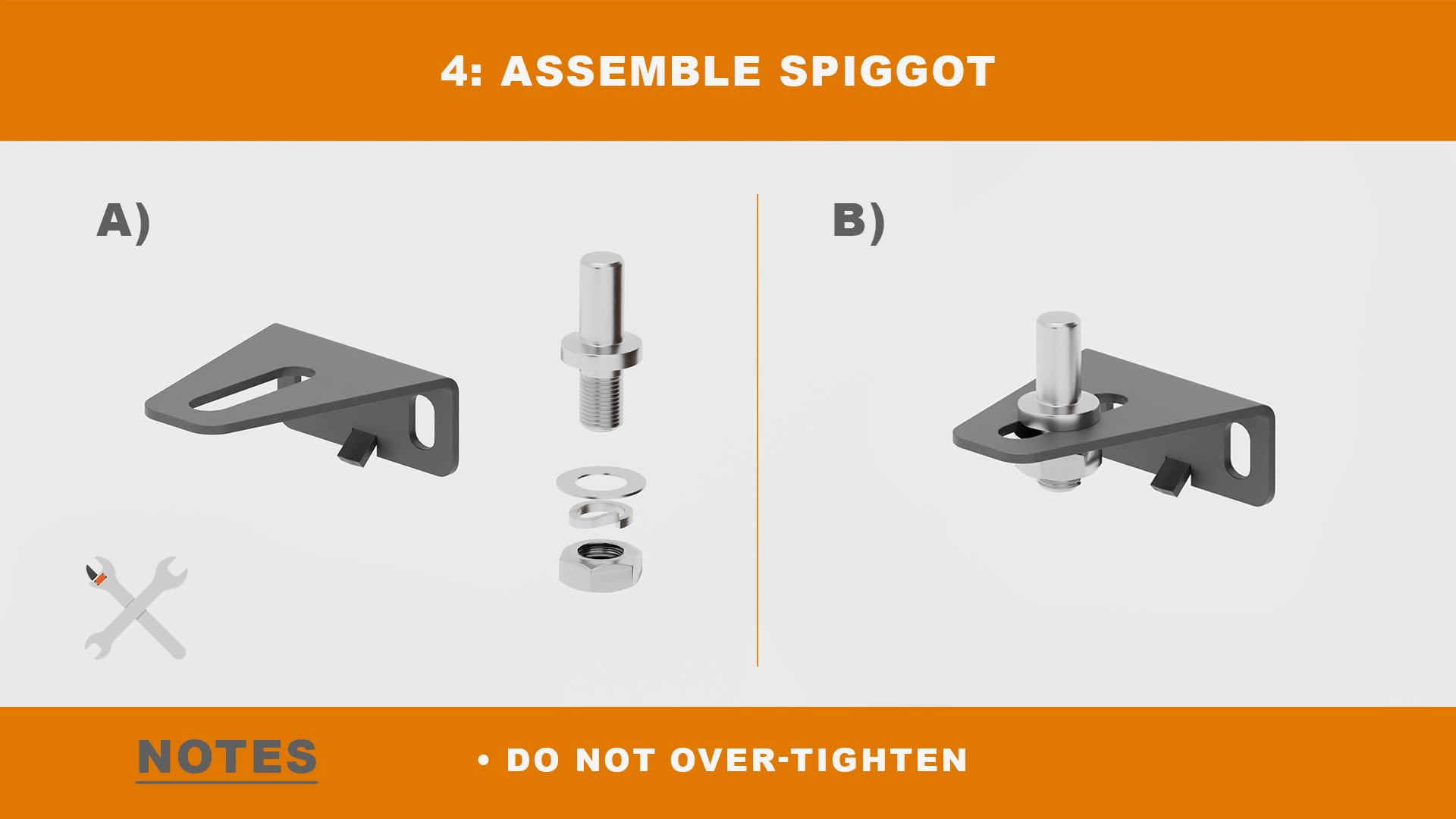

Assemble Sipgot

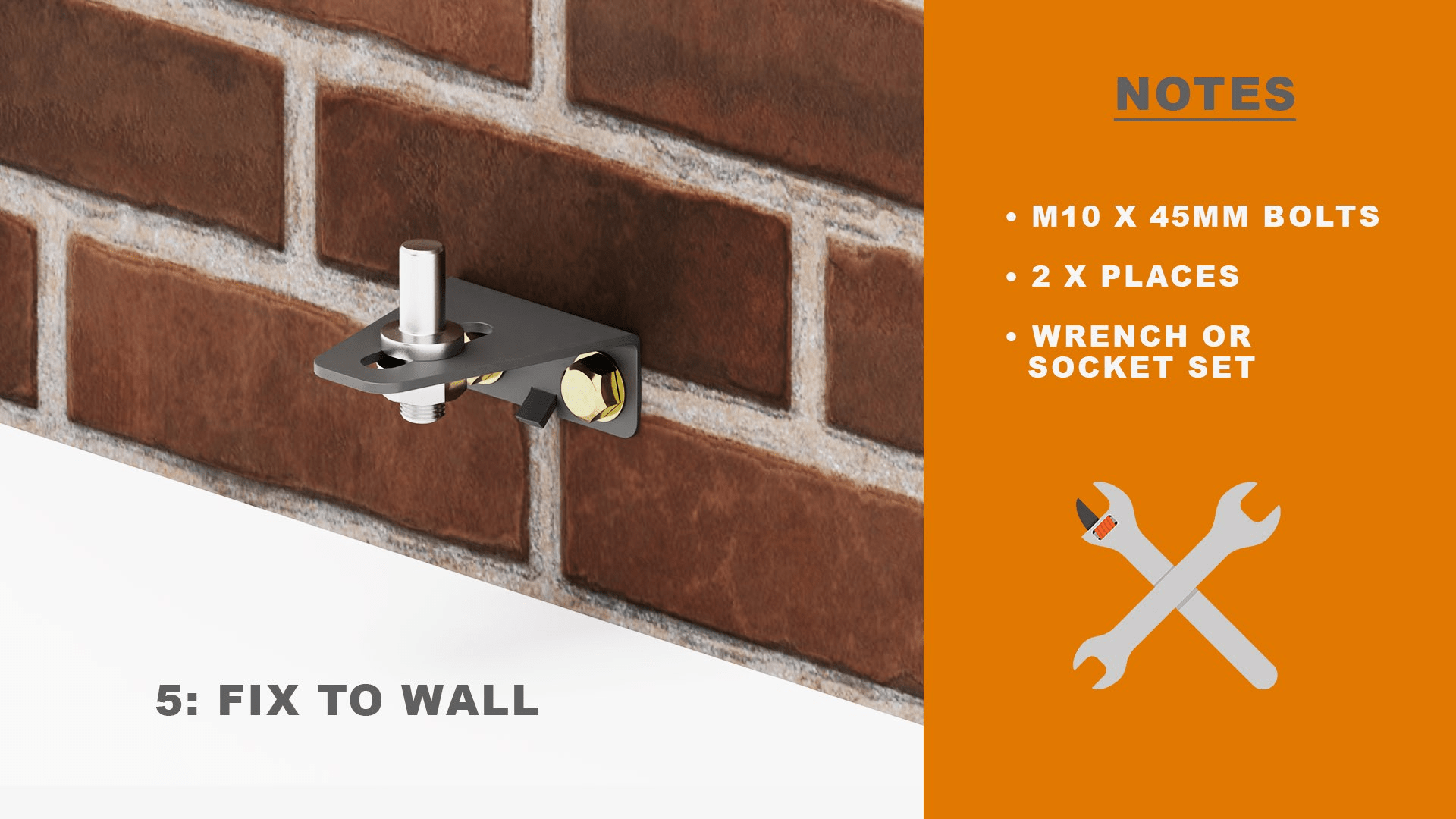

Fix to Wall

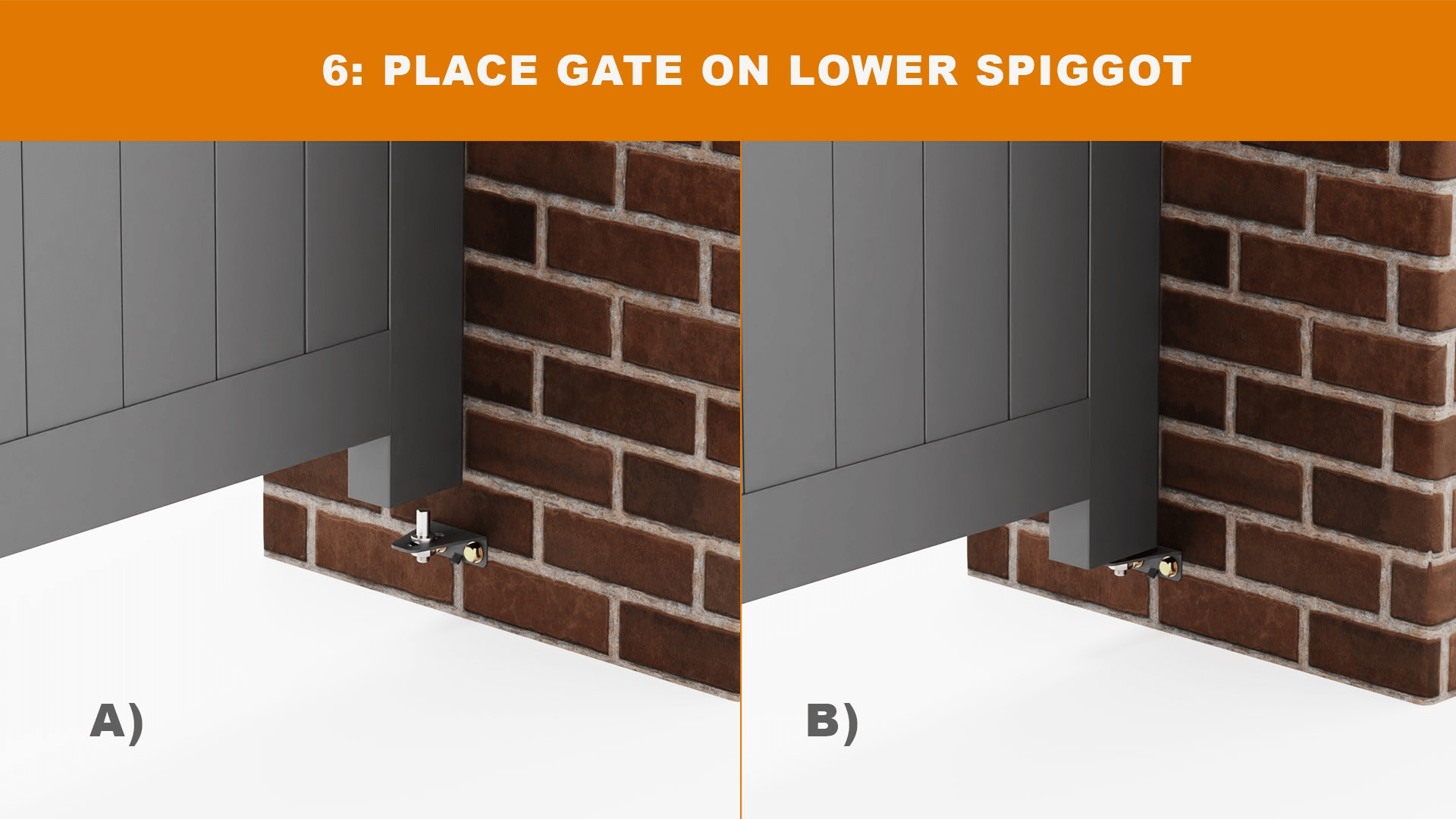

Place gate on lower spigot

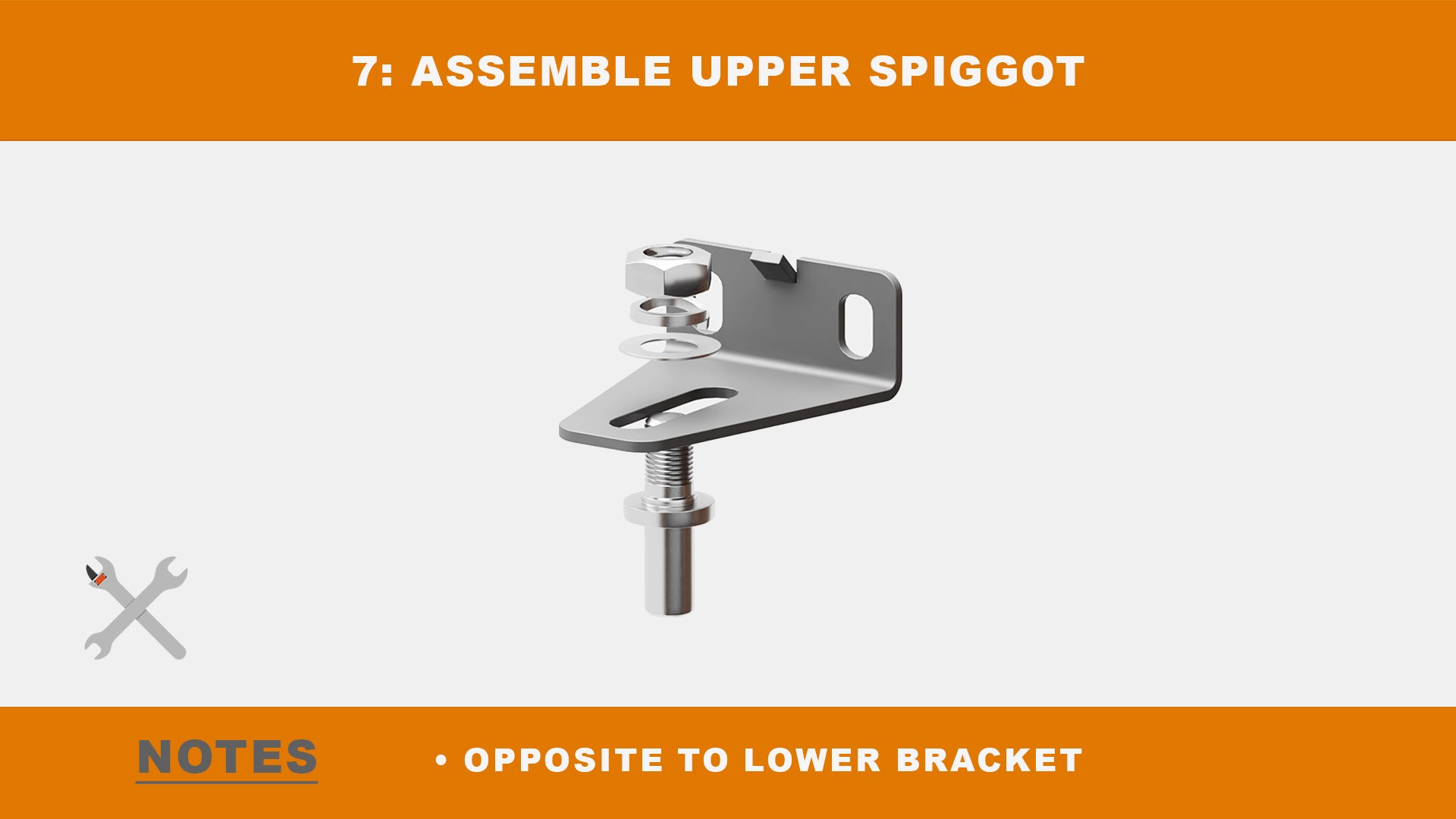

Assemble upper spigot

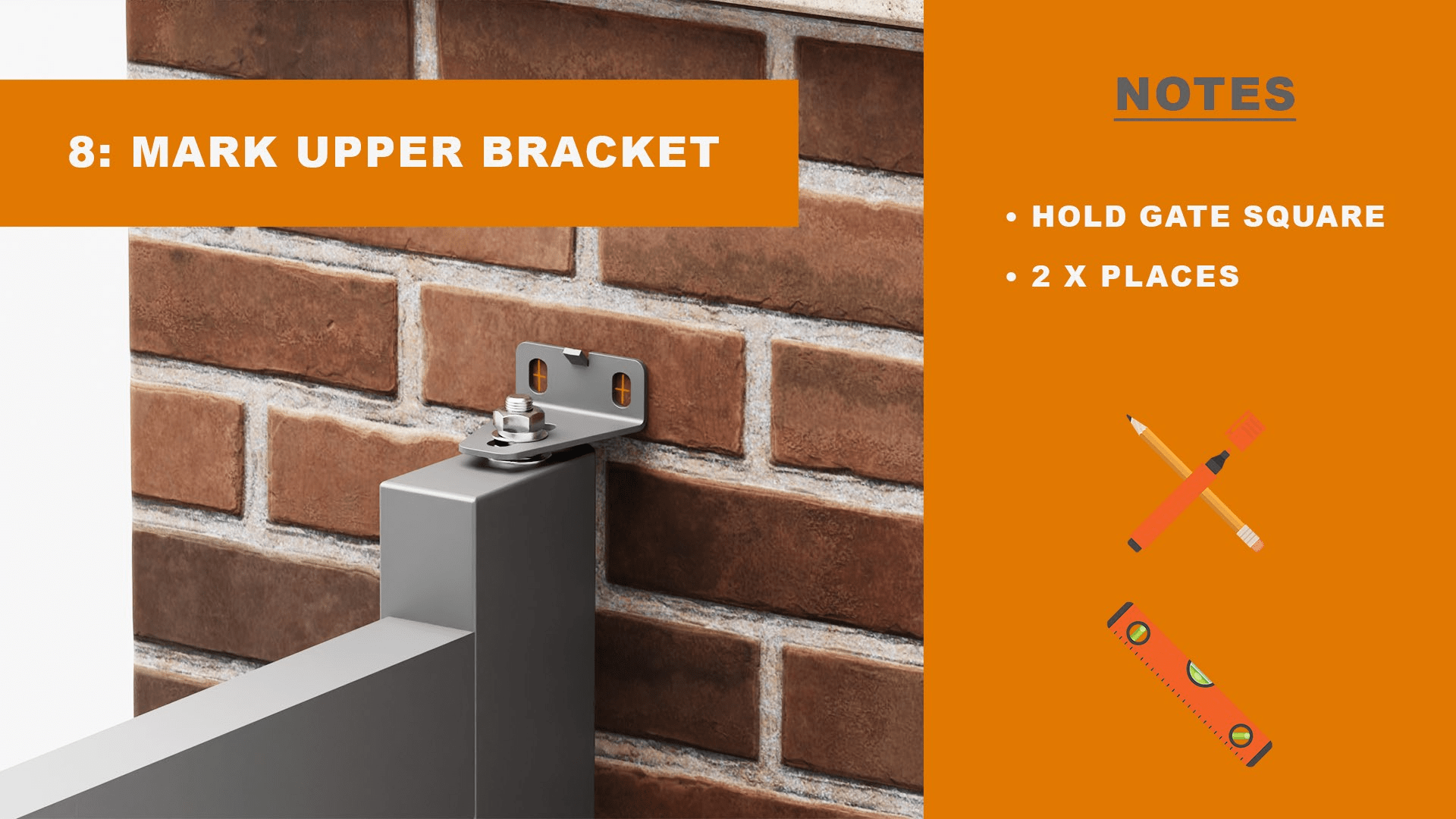

Mark upper bracket

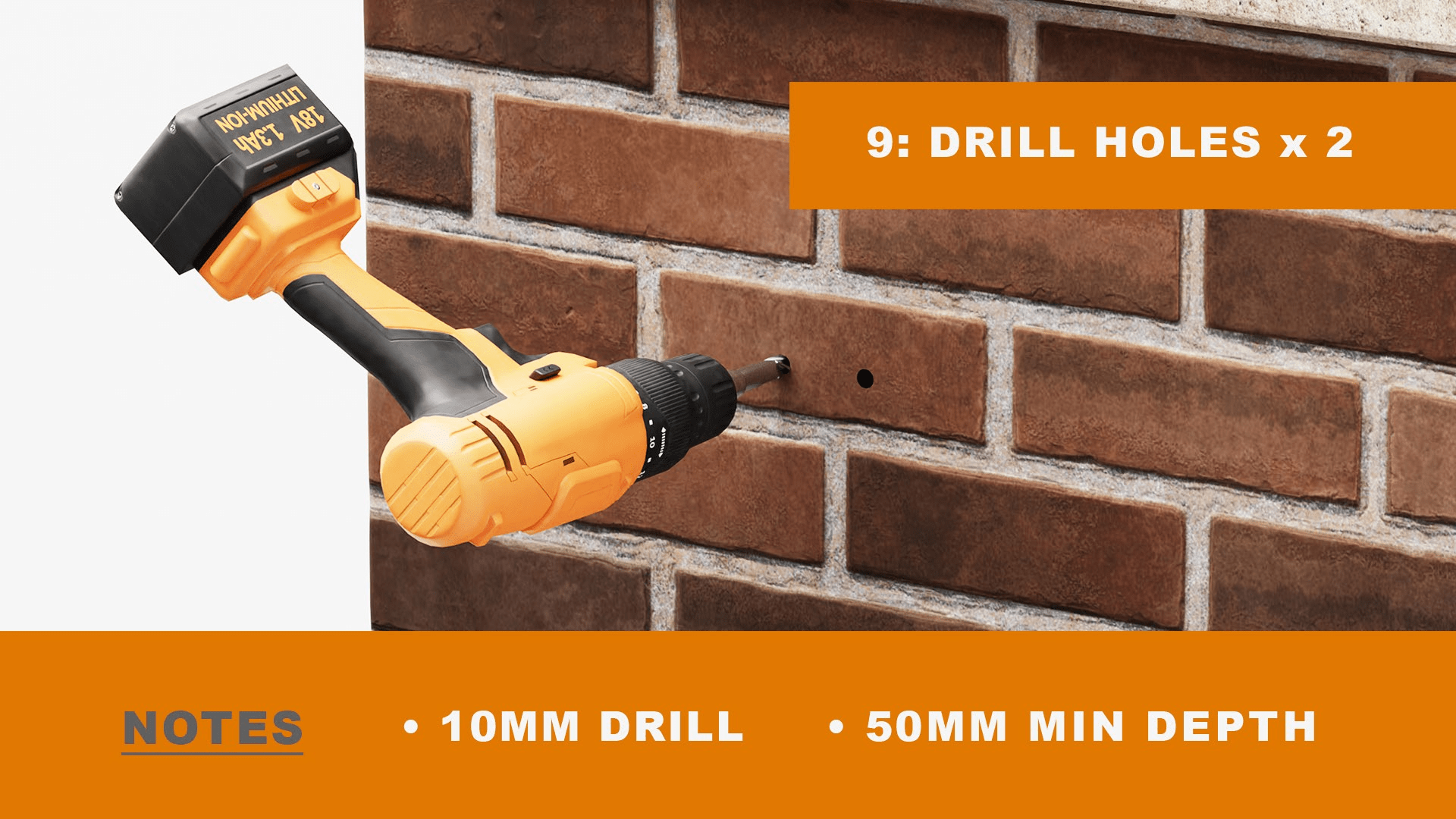

Drill holes for upper bracket

Fix hinge bracket to wall

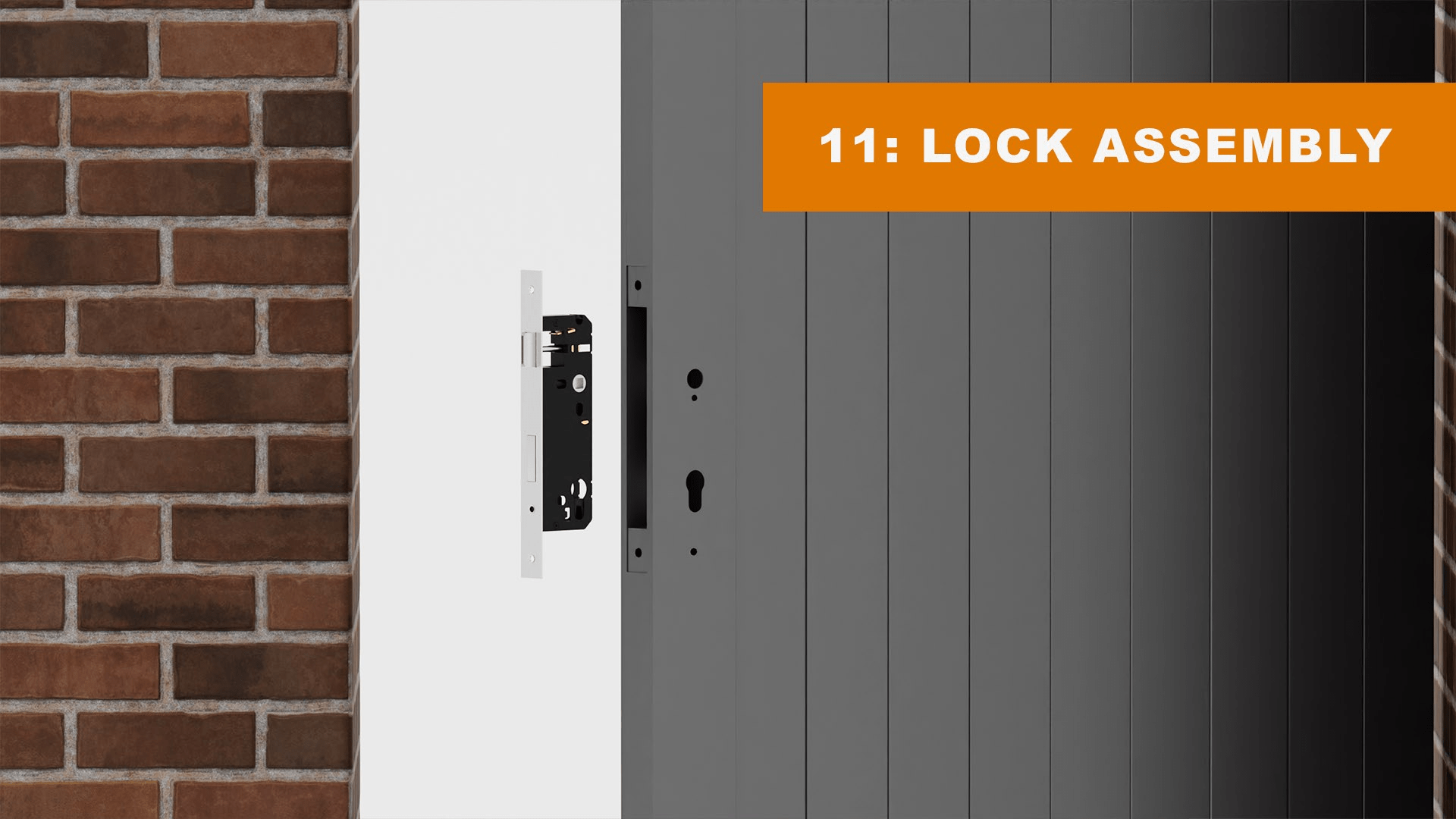

Lock assembly

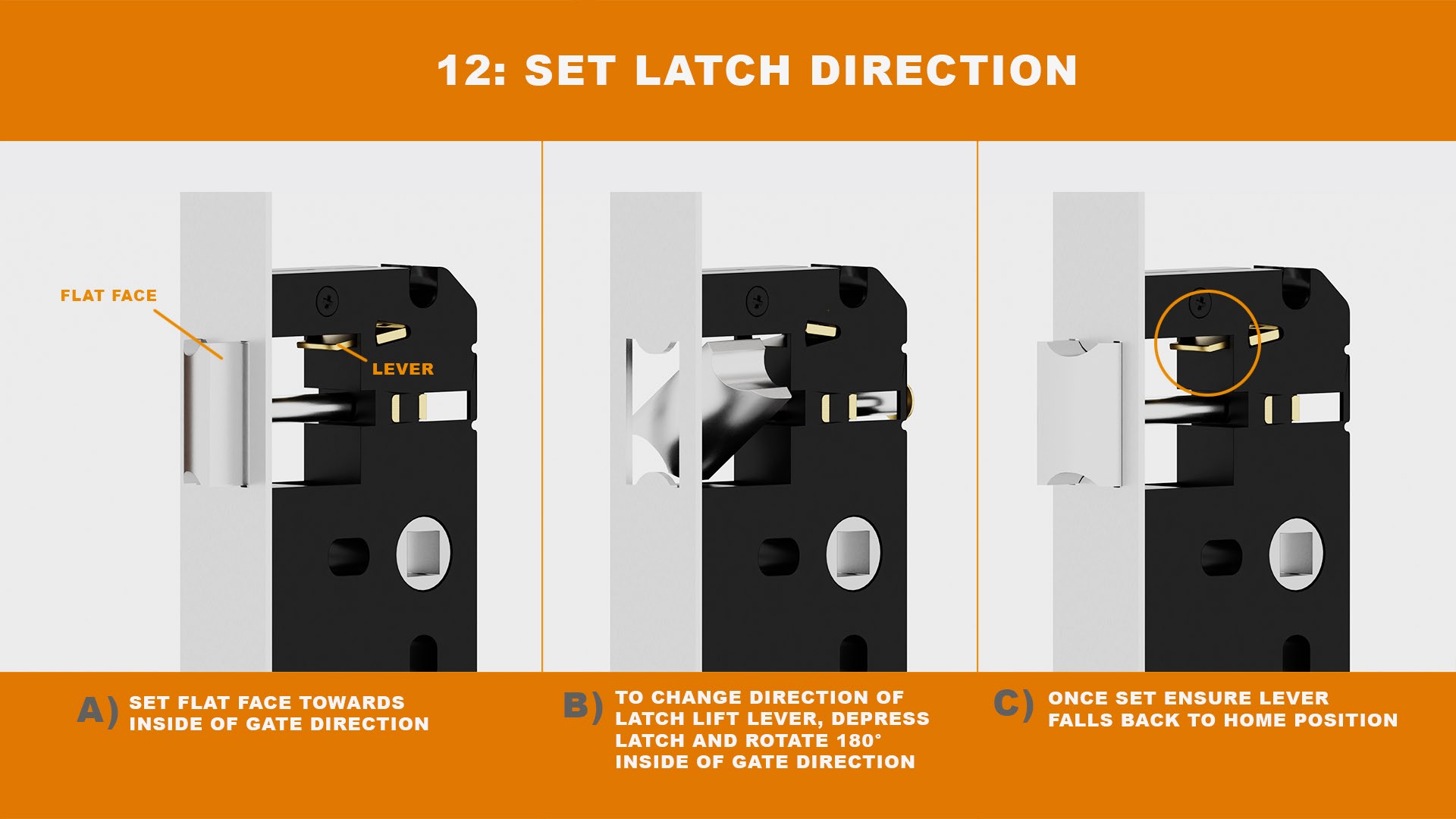

Set latch direction

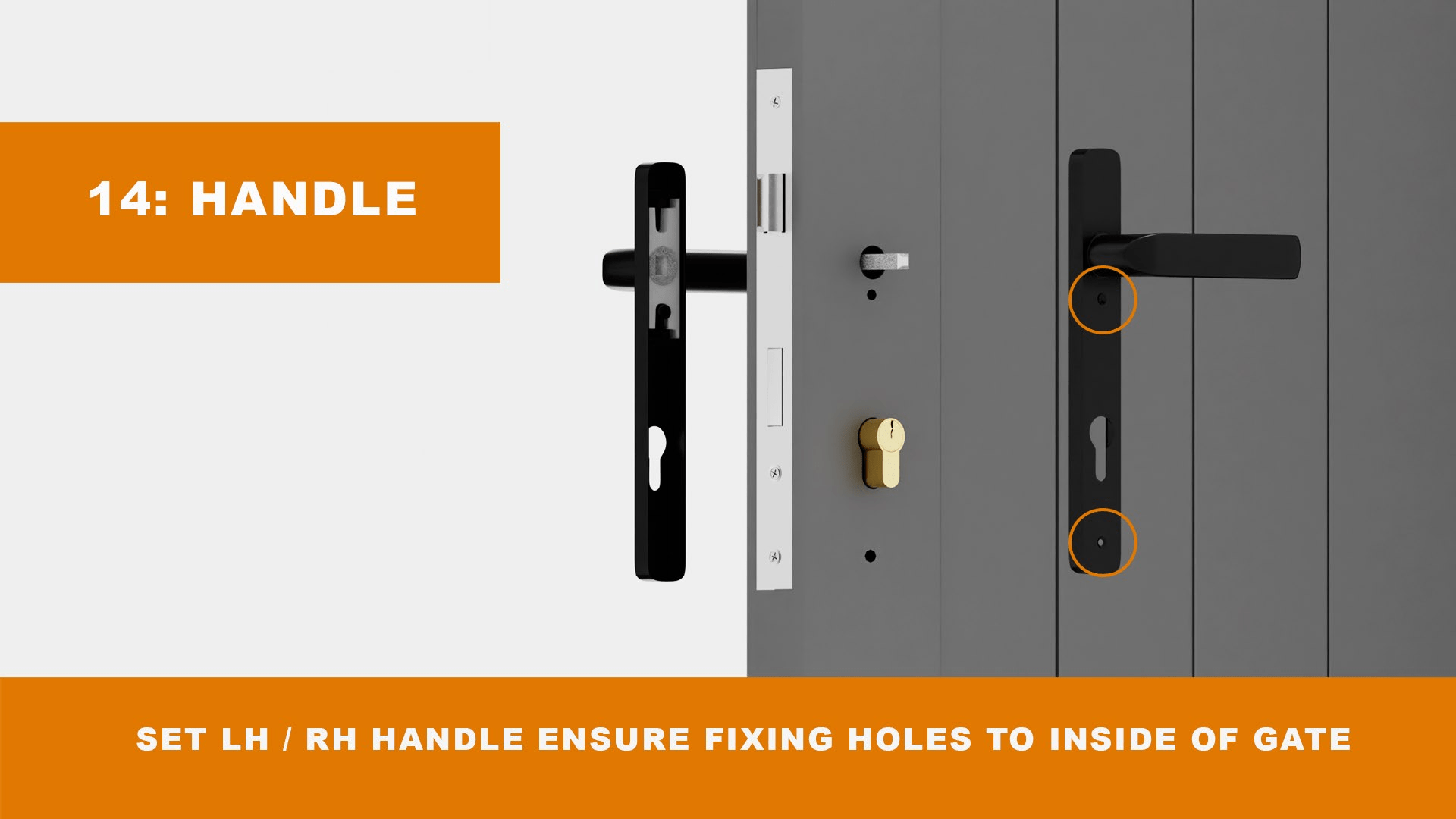

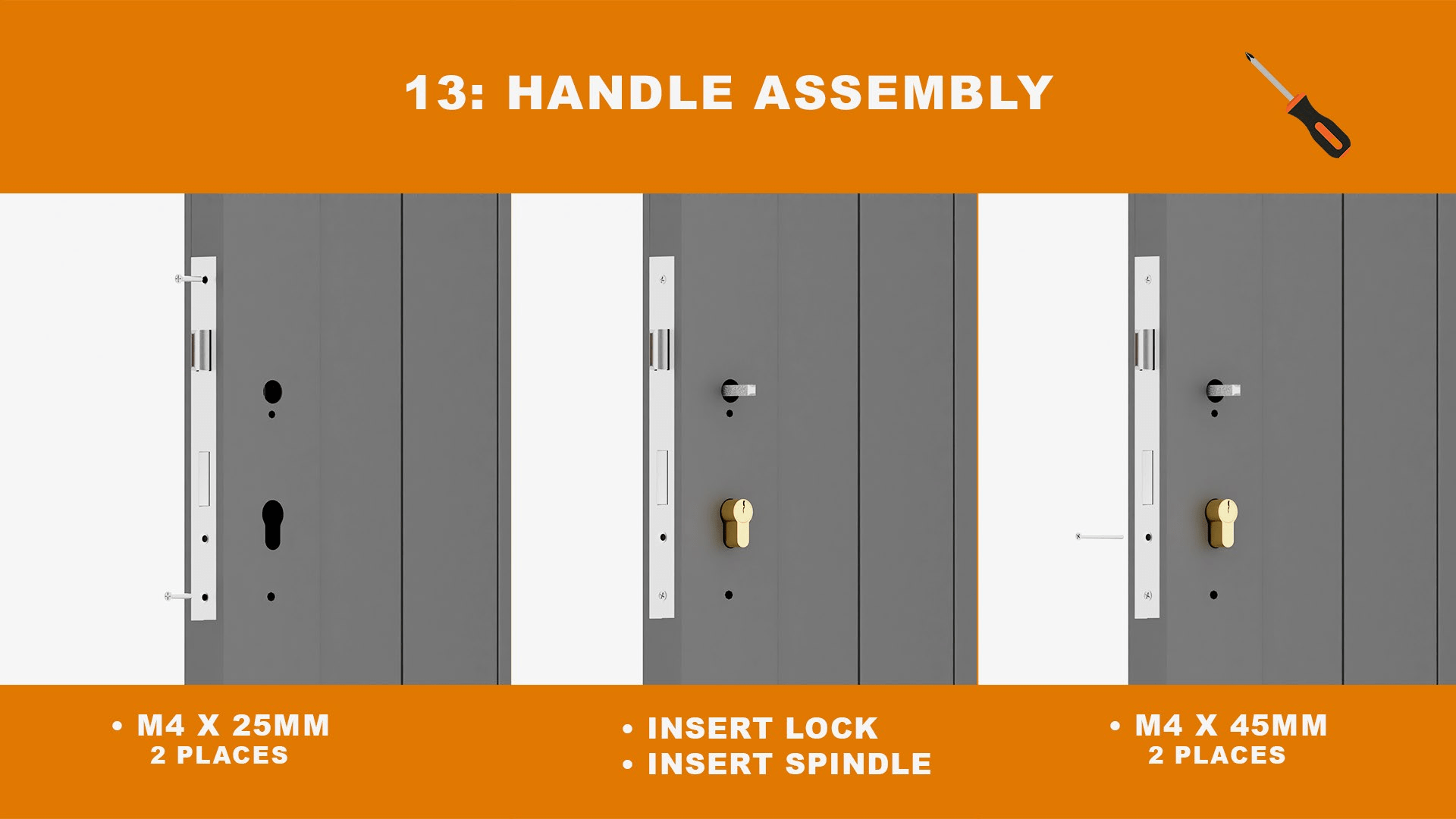

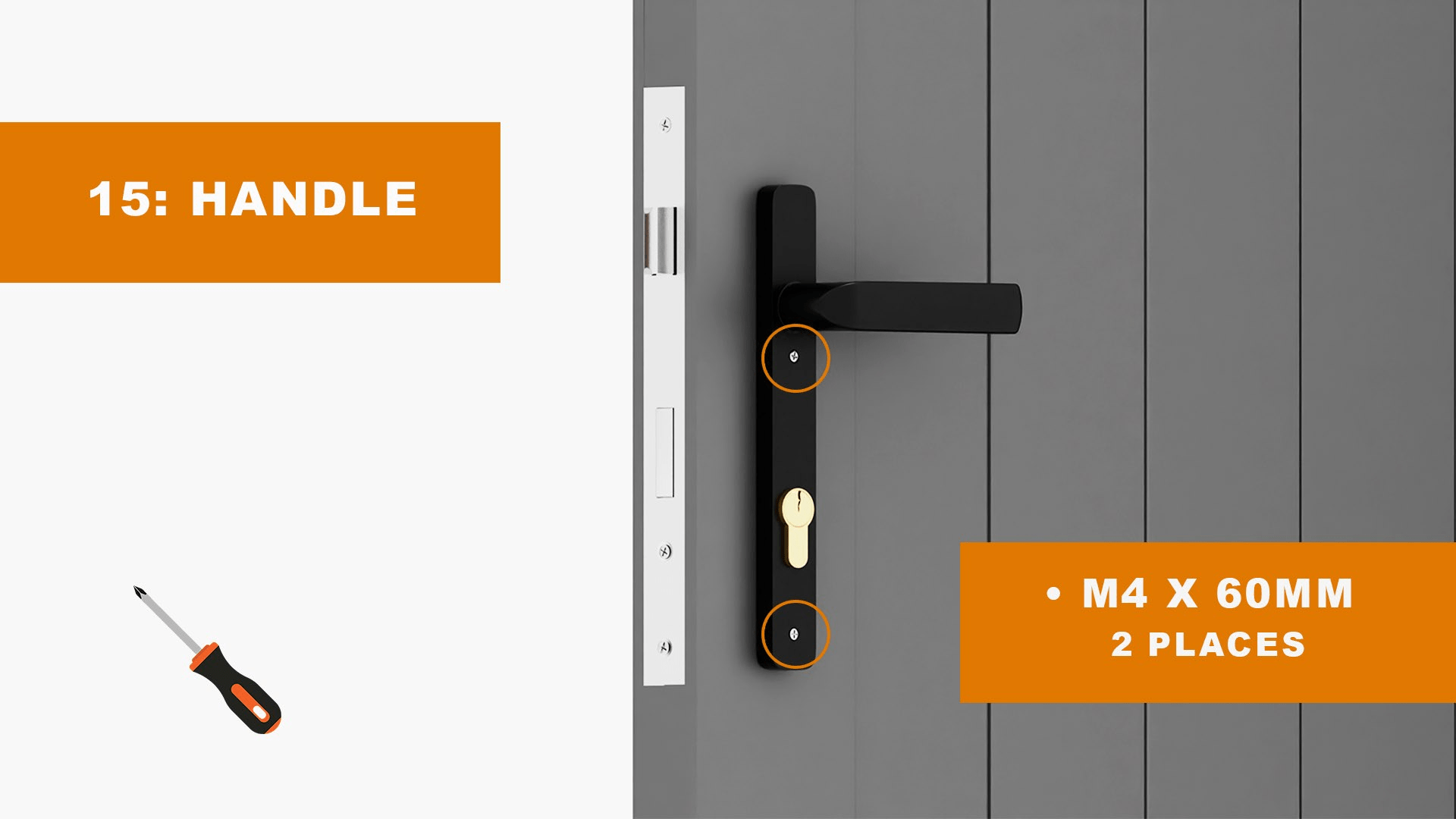

Handle assembly

Mount handle

Secure handle in place

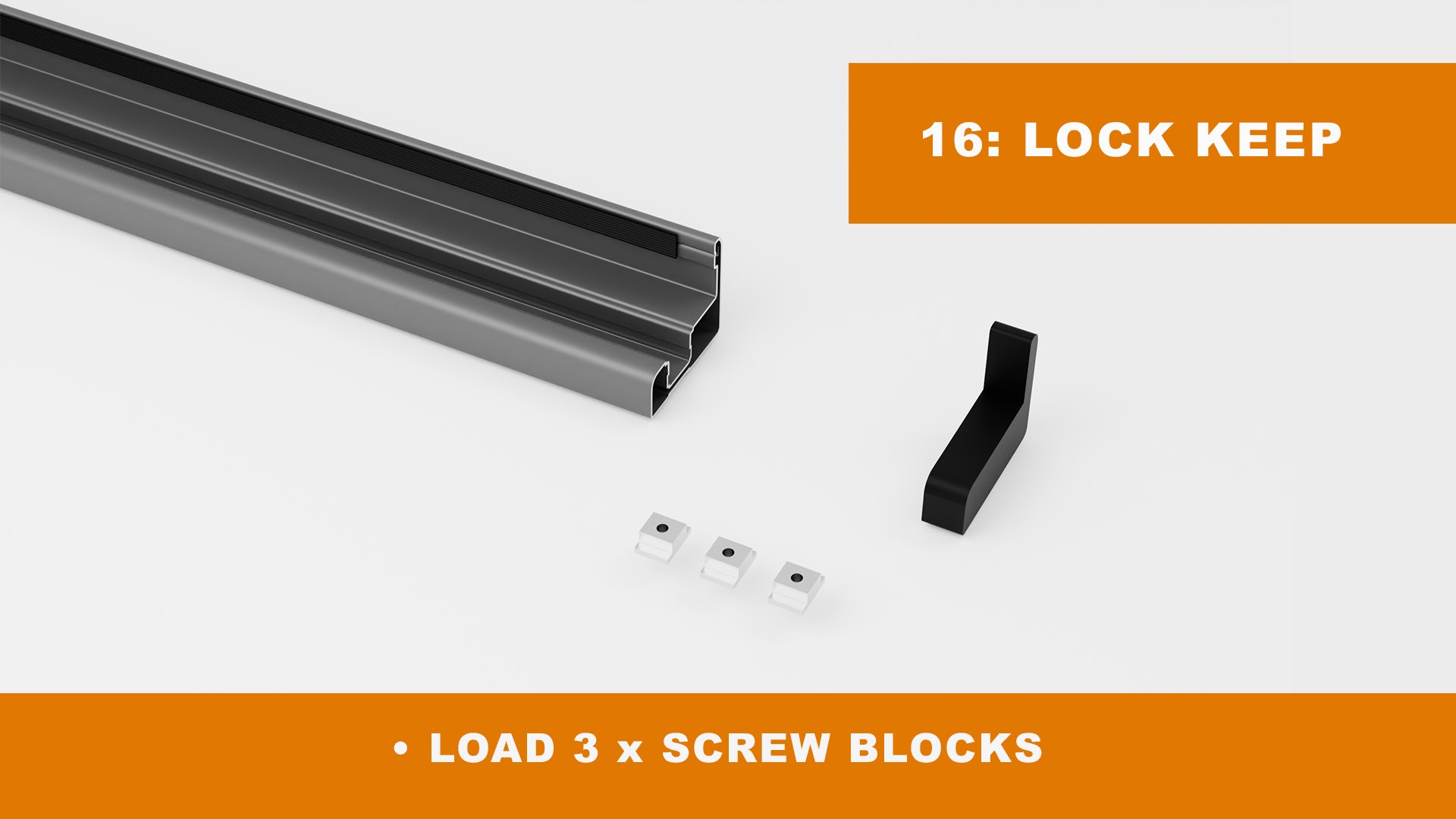

Lock keep

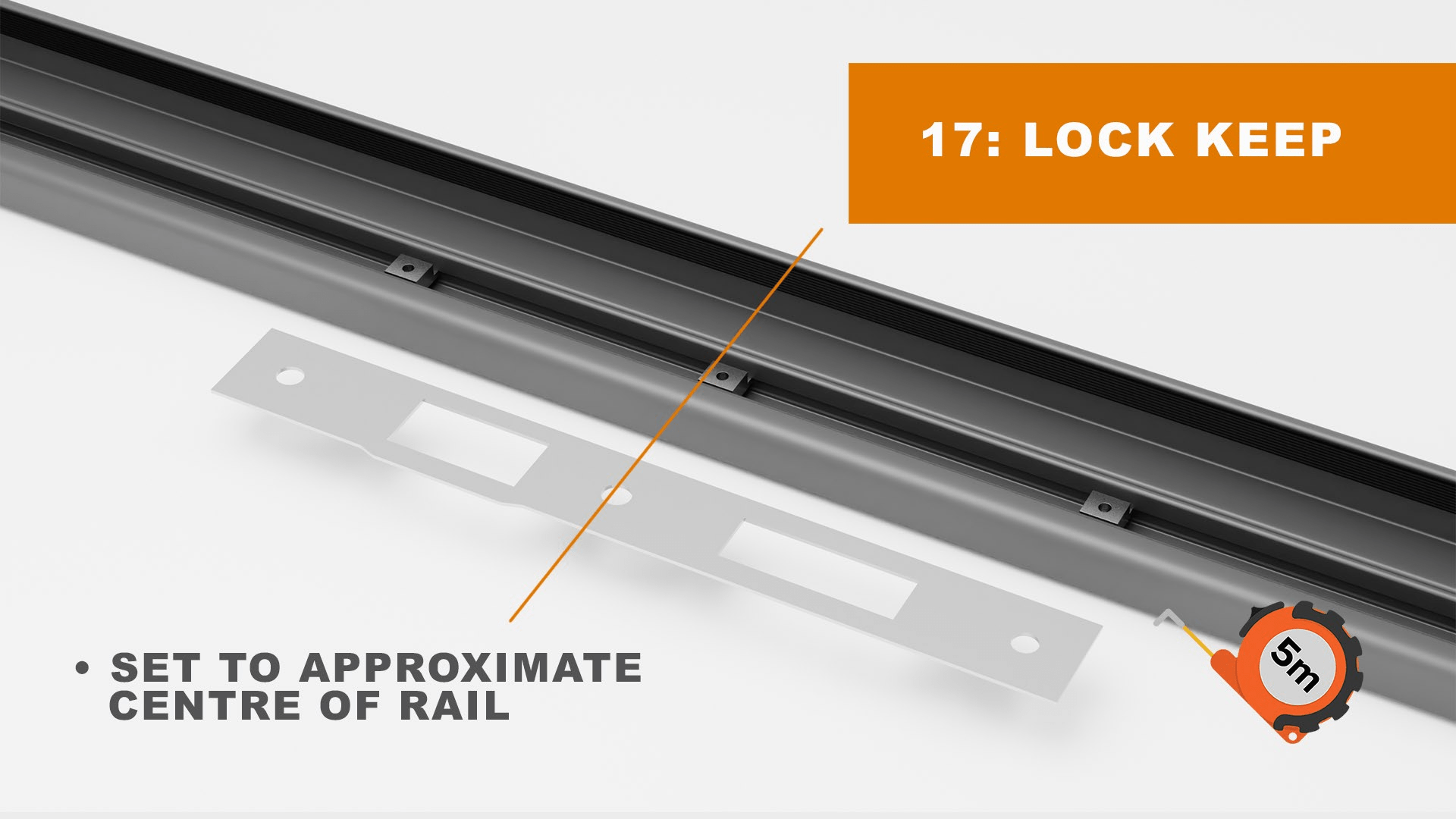

Set latch to centre rail

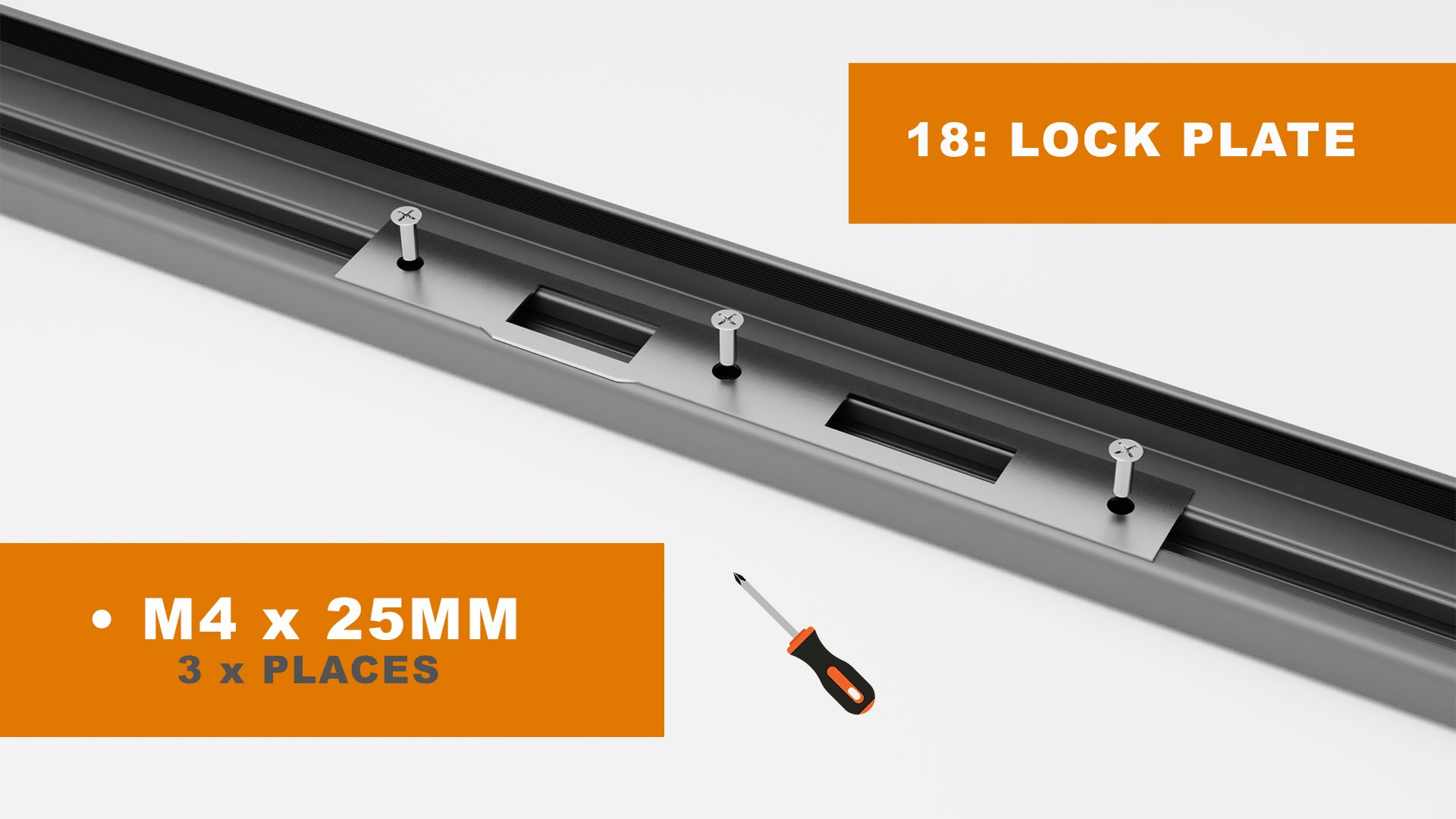

Lock plate screws

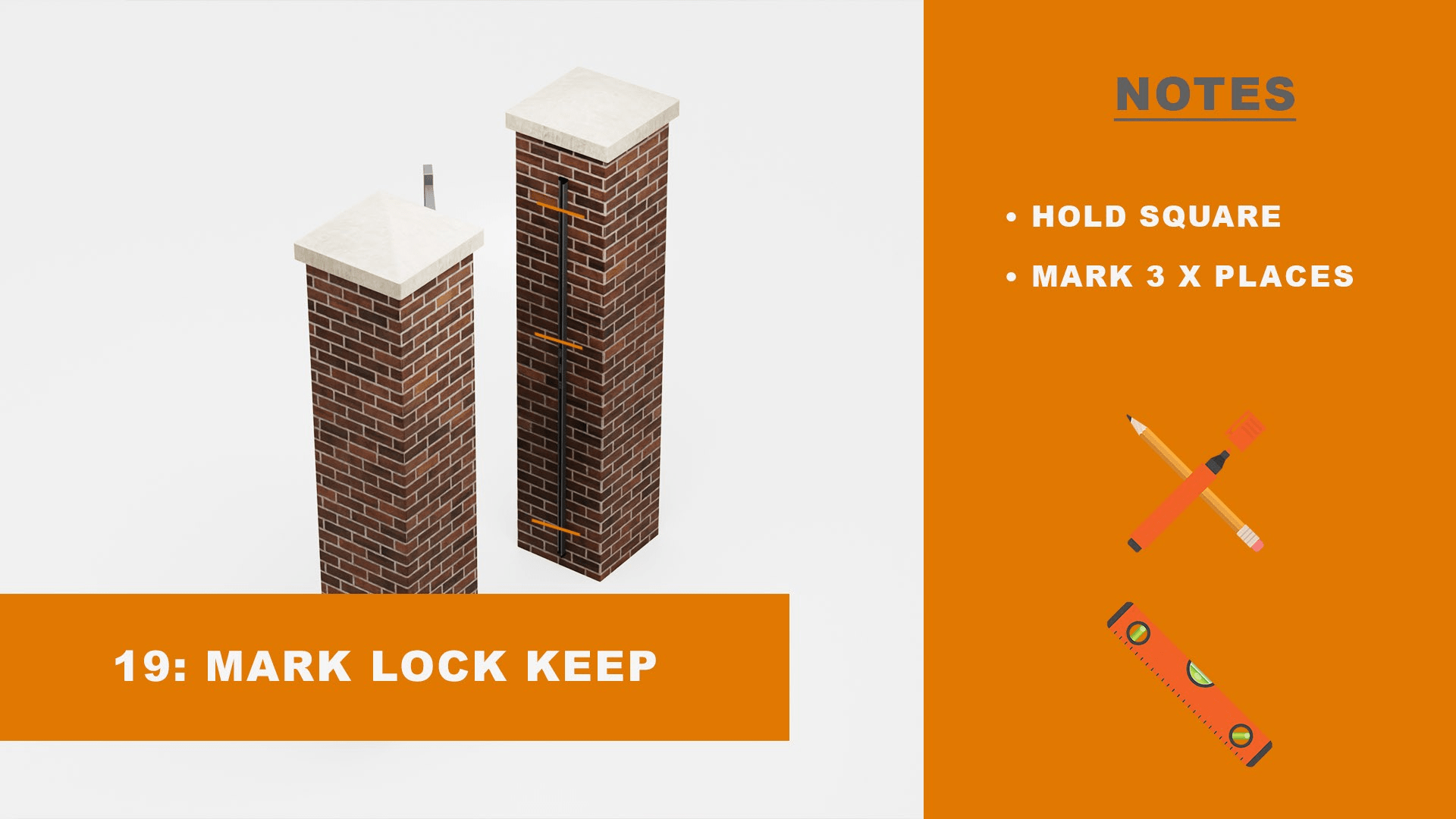

Makr lock keep

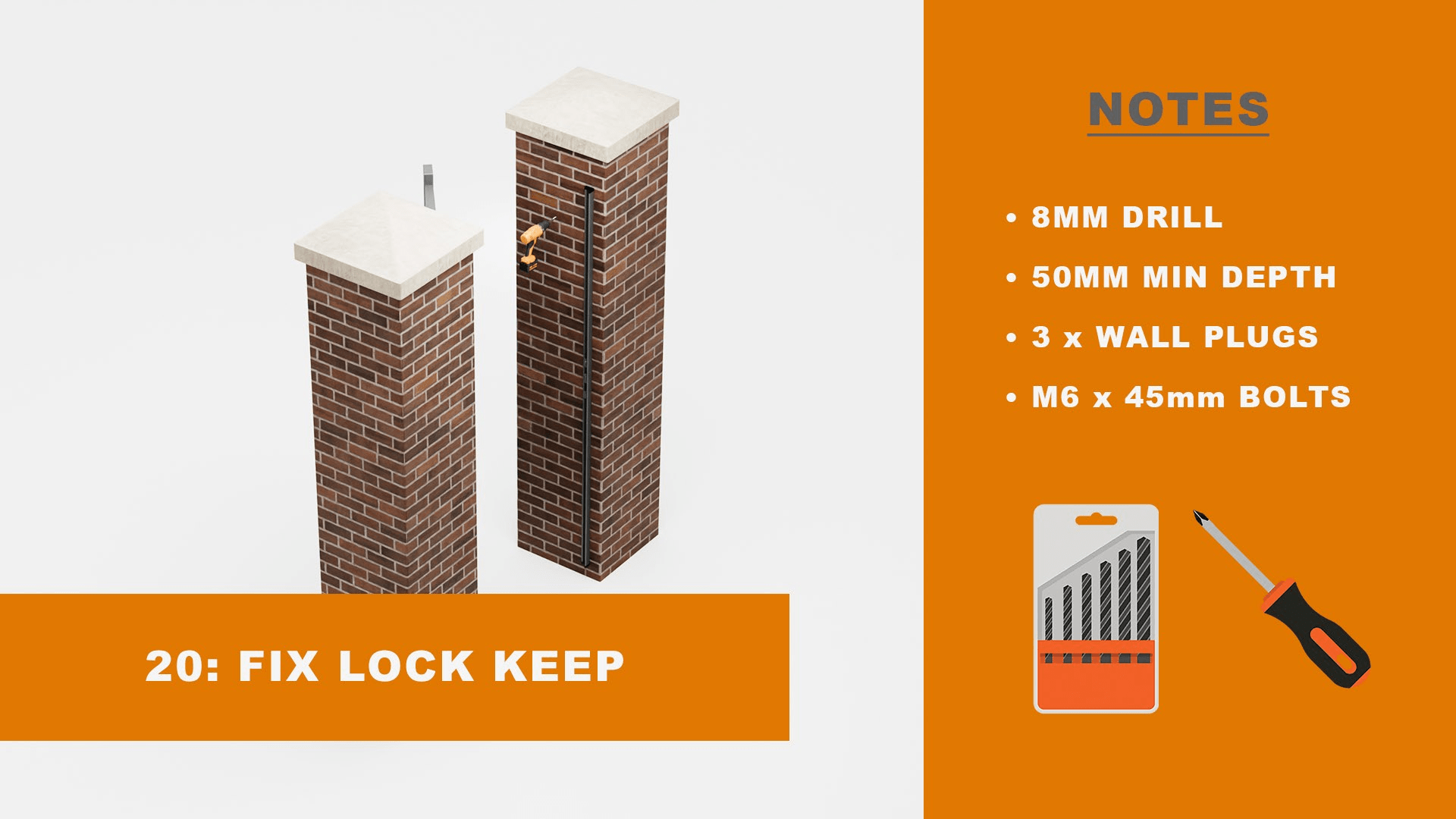

Fix lock keep

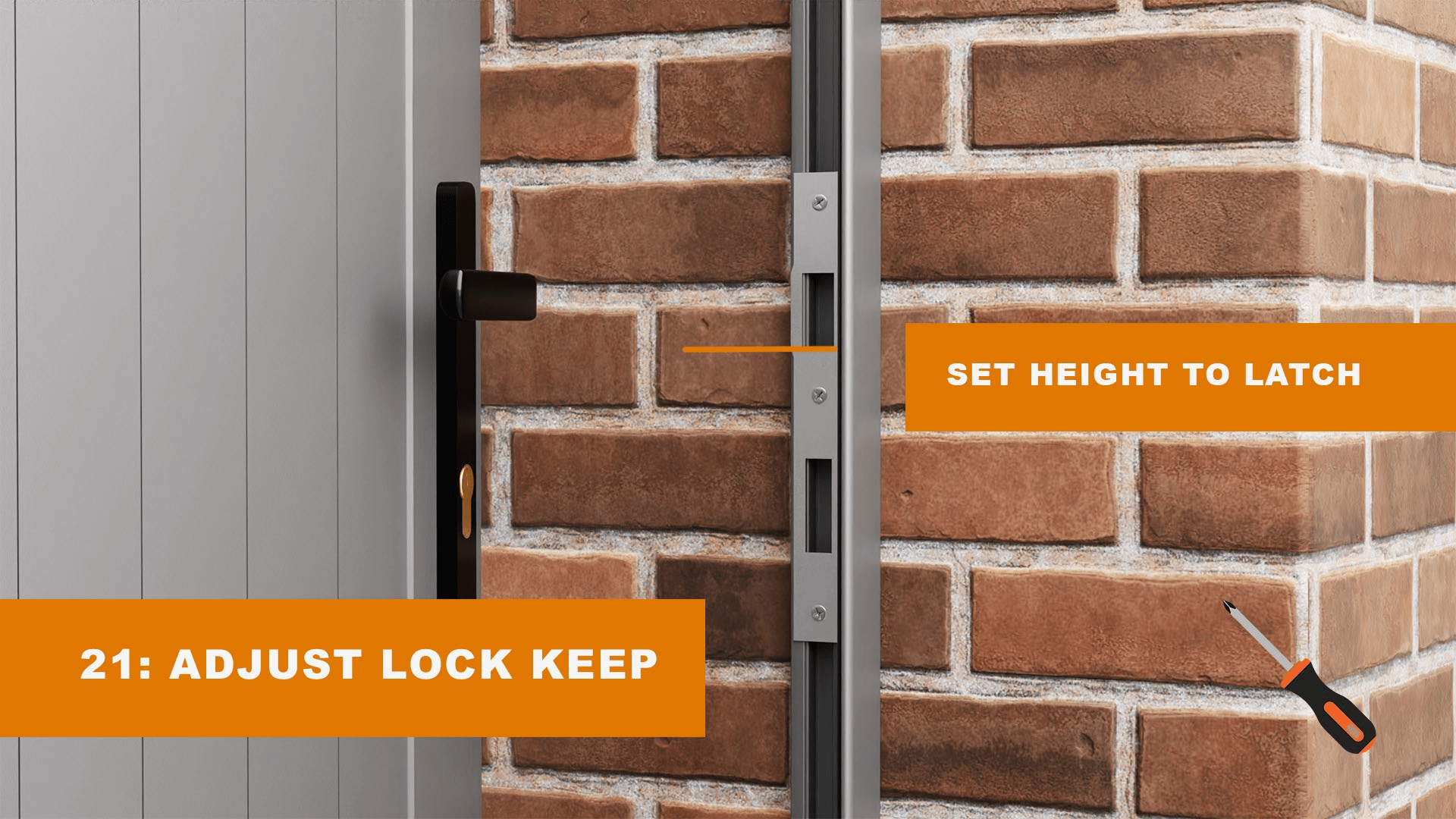

Adjust lock keep

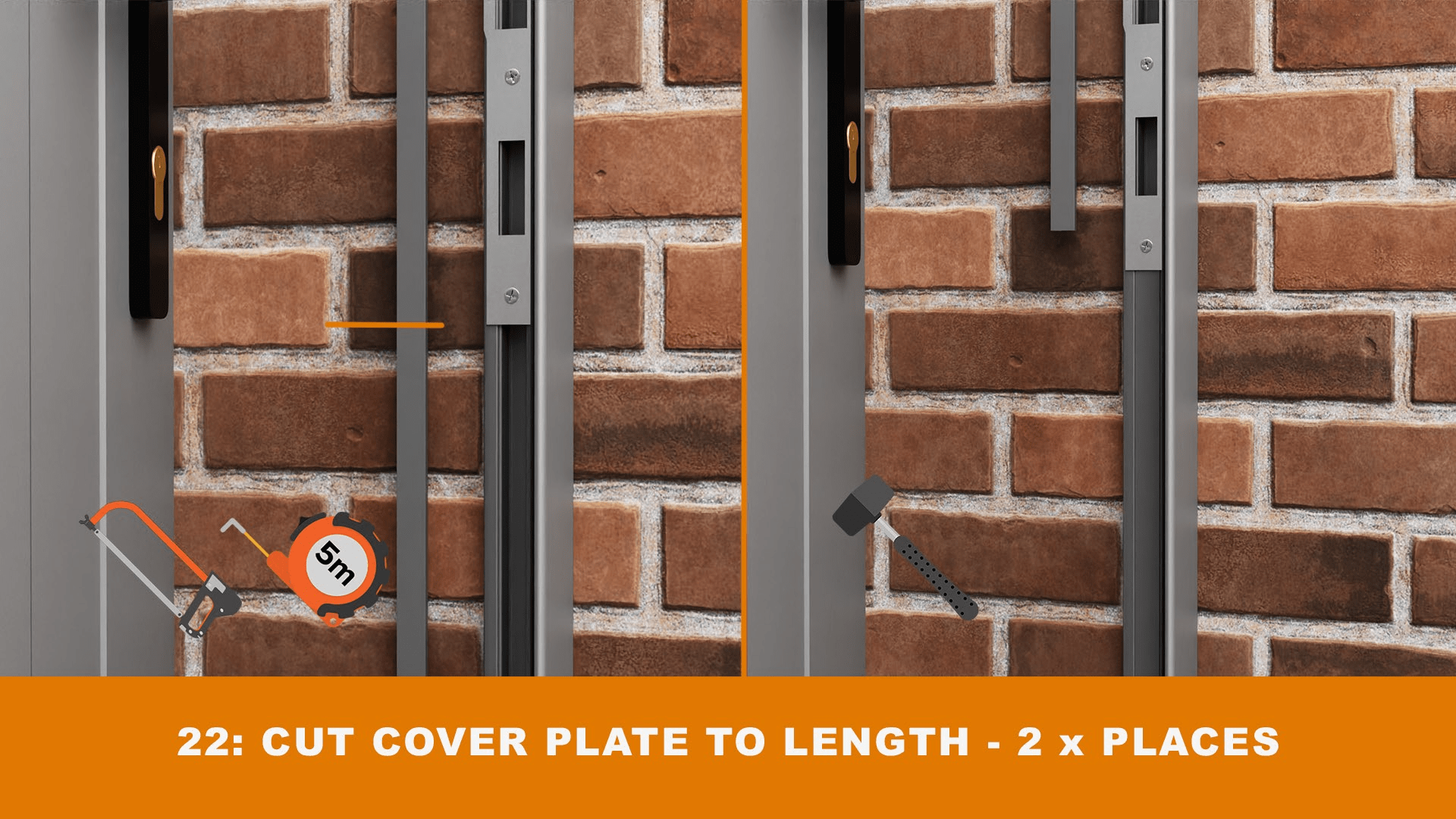

Cut cover plate to lenght

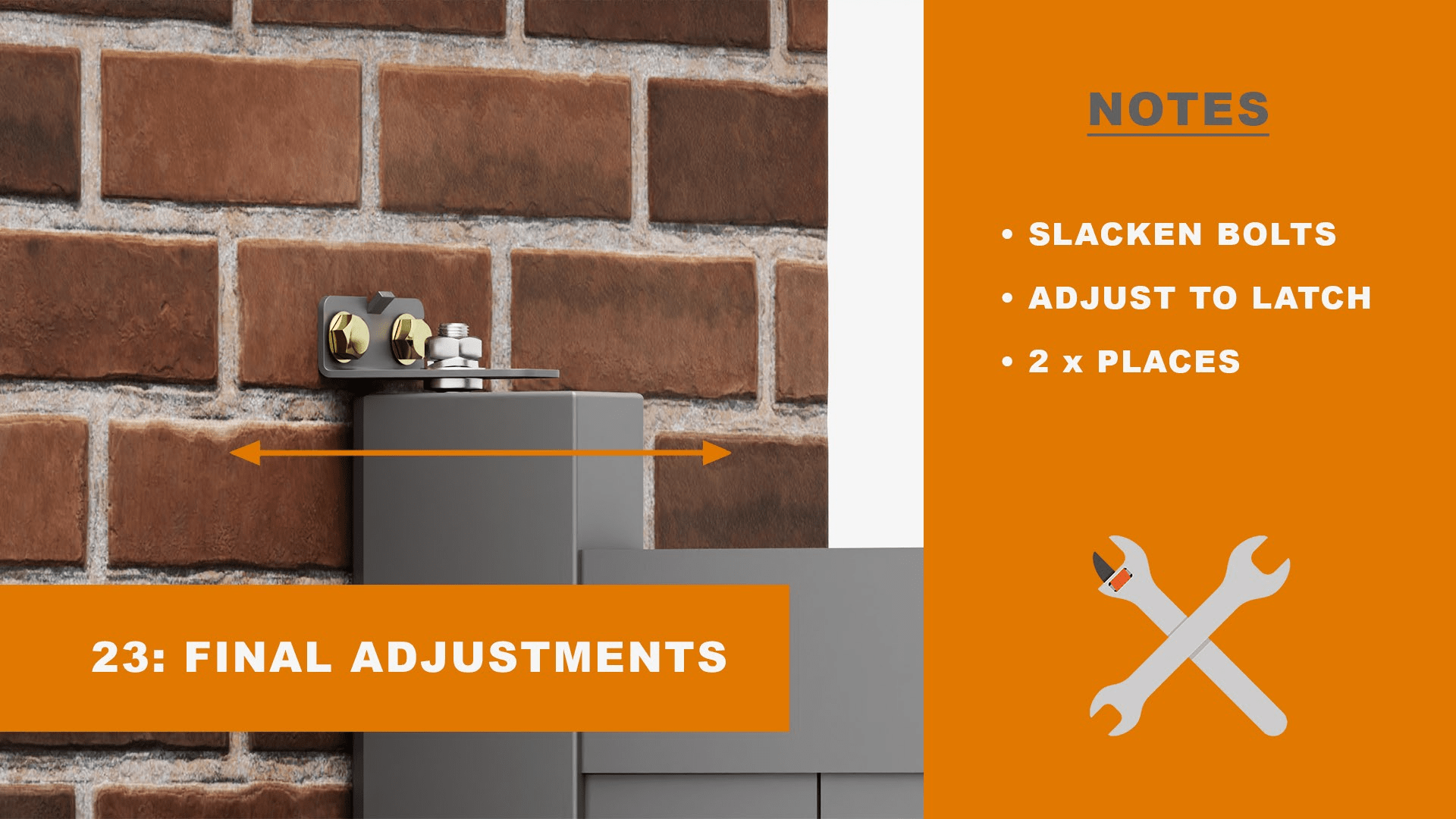

Make final adjustments

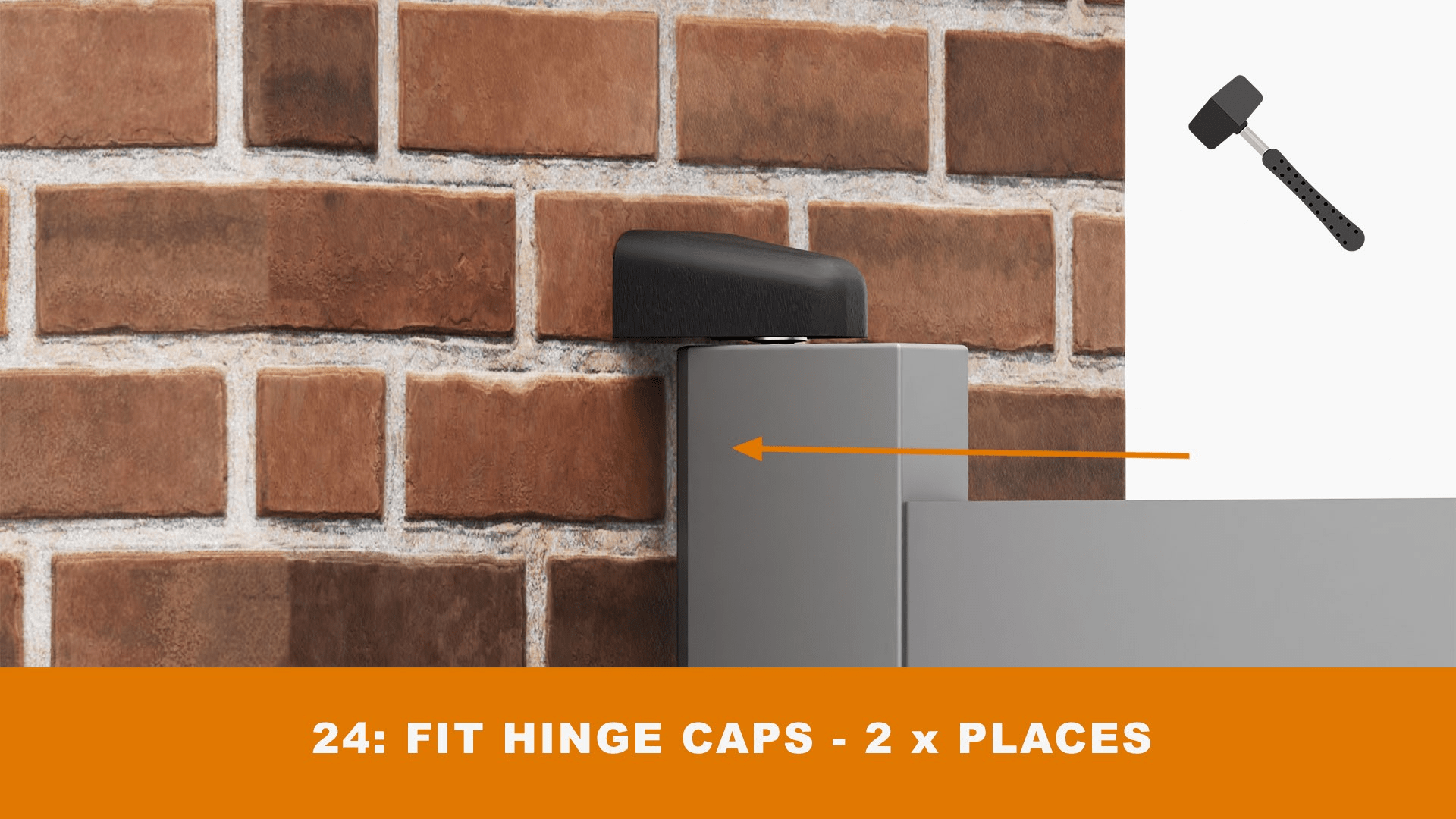

Fit hinge caps

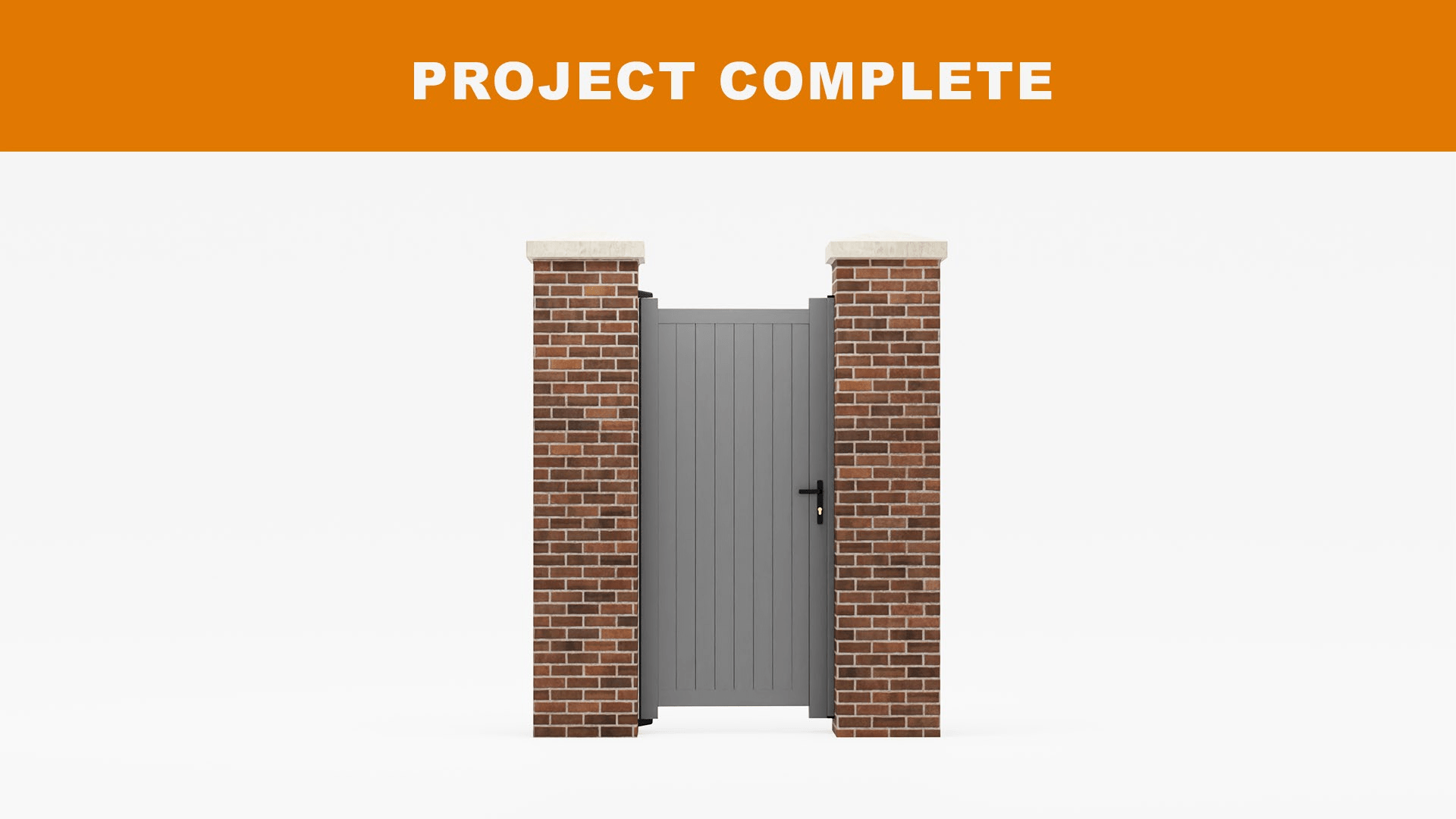

Installation complete
