Hampton Wrought Iron Style Metal Side Gate


Hampton Wrought Iron Style Metal Side Gate

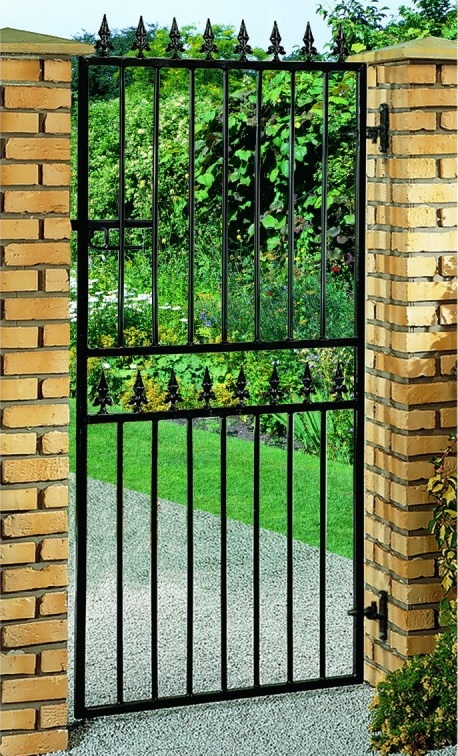

Available in a choice of sizes, the Hampton Wrought Iron Style Side Gate will provide any pedestrian entrance with additional security benefits at a very affordable price. Handmade in the UK, it features a rigid box section steel framework, tube infill bars and fleur de lys finials for a timeless appeal that will integrate well with any property style.

Delivery:
Please allow approximately 6 weeks lead time for delivery of this product.

Choose the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

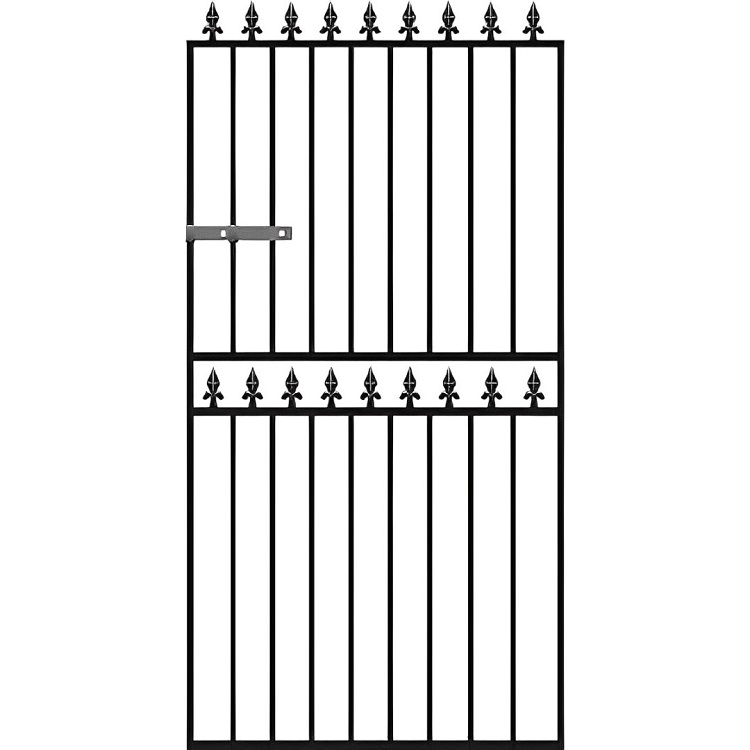

Handmade in the UK to industry-leading standards, the Hampton Metal Side Gate provides traditional wrought iron style at an affordable price. Constructed from heavy-duty steel components to gain strength, rigidity and performance, this excellent value metal gate features a double row of fleur de lys finials to provide improved aesthetics, whilst the sliding latch (which you can secure with a padlock) provides ample levels of security for any residential application.

Hampton Metal Side Gate Specification

  • Handmade in the UK using high-quality components for superior levels of performance.
  • The elegantly simple design will suit any residential property.

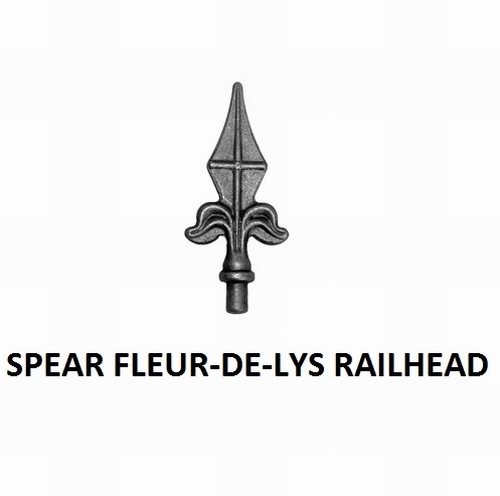

  • A double row of fleur de lys finials creates a timeless appeal.
  • 25mm x 25mm box section frames and 16mm metal infill bars.
  • Suitable for right-hand hanging (as viewed from the road). Please contact us if you wish to hang the gate the other way around.
  • Supplied with a pair of adjustable hinges and a sliding latch (can be secured with a padlock).
  • Hampton metal side gates are black primed (undercoat) during production. They are ready for on-site painting to the colour of your choice.



Height (after installation)

  • 1830mm (6ft) + finials mounted above the framework



Optional Extras

Contact Us for prices if you are interested in any of the options below.

  • Heavy-duty mortise lock
  • Ball top finials
  • Fleur de lys finials (safety top)
  • Zinc-plated (electro-galvanised) and black powder-coated paint finish






Ordering Information

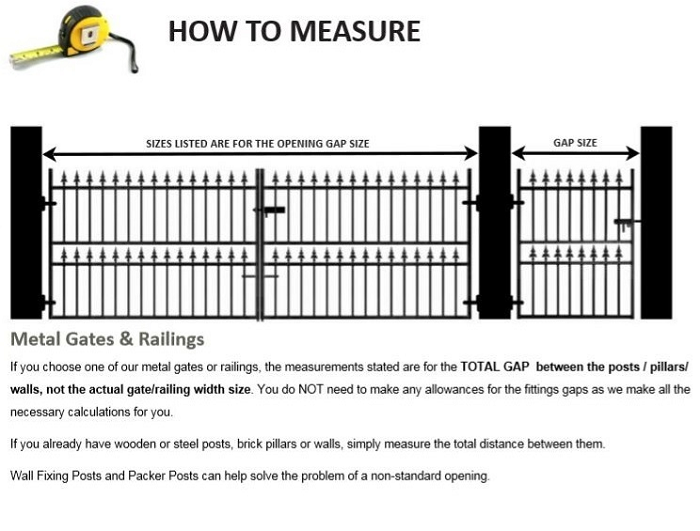

What Does the "Fits Opening" Measurement Indicate?

These measurements indicate the opening width required between your walls, existing posts, or other supporting structures. The dimensions already include the space needed for the hinges and latch. For further guidance, look at our measuring guide or contact us for assistance.

What Does "Height (after installation)" Mean?

This dimension is the height of the Hampton wrought iron style side gate once you have installed it with a 50mm for ground clearance. The measurement is taken from ground level to the top of the horizontal framework. The finals welded above this point are not included in the height.

View the Measuring Guide






Need Help With Sizes?

Please read the measuring guidefrequently asked questions and ordering guide for online guidance. Alternatively, contact us today, and we will happily answer your queries.
